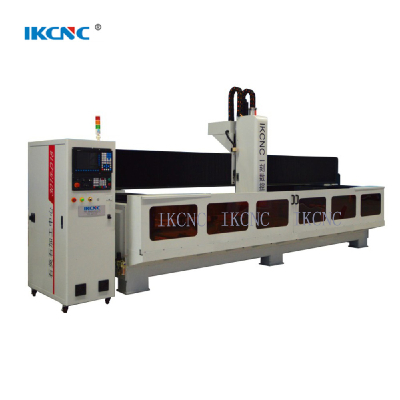

China high quality quartz stone countertop machine with ATC

China high quality quartz stone countertop machine with ATC

  • FOB Price:US $20,000 -30,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-12-26
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  30
  • Place of Origin:  Jinan China
  • Brand Name:  IKCNC
  • Model Number:  3015
  • Weight: 5100.000 kg

Automatic realization of the quartz stone countertops drilling, cutting, grinding,

the front European side and the rear round bottom arc processing

 automatic reading drawing function, without the cumbersome proces of the

traditional software (that need drawing, do the path, the introductions of the path)

 intelligent compensation can be made quickly according to the error of the original

graphic cutting and adhesive plate, no need to change drawing and reset the path

 The edge grinding and polishing system with automatic adaptive module coulc

solve the problem that the processing load is difficult to grasp ,the poor quality of

polishing or stone could not be polished.


  • Size:  30
  • Place of Origin:  Jinan China
  • Brand Name:  IKCNC
  • Model Number:  3015
  • Weight: 5100.000 kg

Model

IK-3013-D18

Working size

3000*1300*350mm

Moving speed

30000mm/min

Max working speed

15000mm/min

Spindle power

5.5kw

Spindle speed

8000-12000r/min

Tool change type

ATC  18 Pcs tools.

Workpieces fixed model

Double - sided sealed vacuum suction cup adsorption system

Control system

Customized Intelligent Grinding Professional System

Drive system

 high-end Yaskawa servo moter driver

Machine size

6000*2280*2500mm

Weight

5.1T
